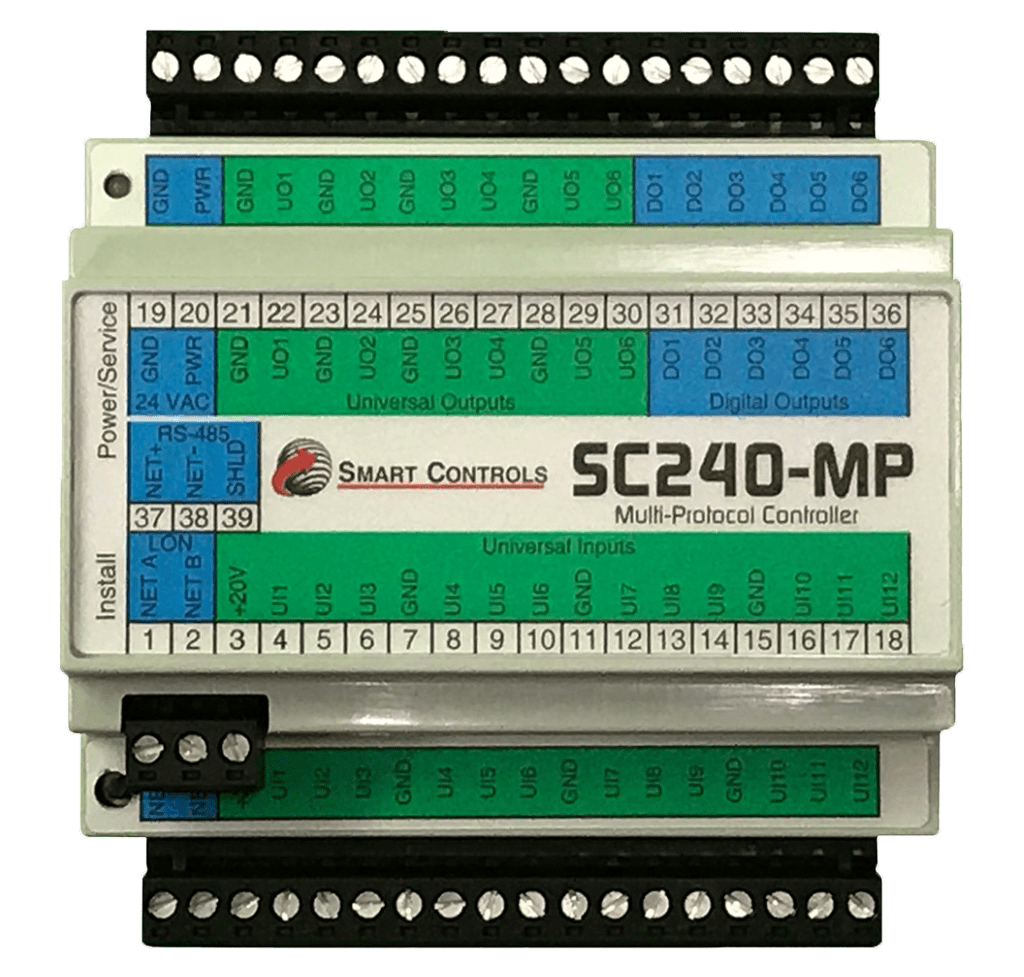

Multi-Protocol Controller, SC240-MP


  • 12 Universal Inputs (0-5V, 0-10V, 0-20 mA, thermistor, dry contact or open-collector)
  • 6 Universal Outputs (0-10V or Triac)
  • 6 Digital Outputs (Triac)
  • Communication: NATIVE BACnet/MSTP, MODBUS/RTU, LonTalk/FT
  • IP Support: BACnet/IP, LonTalk/IP over TP/FT-10 (Requires Router)

Log In to Add to Cart!

Retail and wholesale customers can purchase Smart Controls products through their E-Shop account. Log in or register today!

SKU: SC240-MP Category:

Setting a NEW standard in the industry, only one controller is needed to satisfy today’s building automation protocols. Smart Controls’ new MP series controllers can connect to Native BACnet® and LonTalk® simultaneously.

The Smart I/O™ SC240-MP breaks the multi-protocol communication barrier by providing NATIVE BACnet, and LonTalk communication all in one controller. BACnet can communicate over an RS-485 communication channel while BACnet/Free Topology and LonTalk/FT (Free Topology) are communicating over a TP/FT-10 communication channel simultaneously to provide monitoring, control and diagnostic information.

In addition, the SC240-MP has the capability to communicate BACnet/IP or LonTalk/IP in a manner that is transparent to both the application and FT network. With BACnet/IP, applications on the SC240-MP run unmodified over a very reliable Free Topology channel delivering BACnet Objects. With LonTalk/IP, applications on the SC240-MP run unmodified over the same reliable Free Topology channel delivering network and configuration variables. The IP address is established at the device level. The SC240-MP is fully compatible and discoverable using industry standard, BTL certified, BACnet management clients and LONWORKS® network management software.

The SC240-MP is a fully programmable controller with 24 channels of cost effective analog and digital I/O with a real time clock allowing a complete sequence of customized operations for today’s ever-changing control strategies that are required to meet continued energy efficiency requirements. The reliable cost effective I/O is continuously monitored and precisely controlled by an on-board 32-bit microprocessor.

The I/O of the SC240-MP makes it perfect for a variety of equipment control applications. The wide operating temperature range, -20 to 70 °C, makes the SC240-MP well suited for many demanding applications.

The twelve universal inputs (UI) can be configured in a variety of ways. The controller can interface with resistive type sensors for temperature measurements. The UI’s can measure voltage from humidity or other transducer readings. The UI’s can input current for pressure measurements. The UI’s can also be used to read digital inputs and dry contacts. With 12-bit resolution, the universal inputs are field adaptable and accurate for many types of measurements.

Terminal number three of the universal inputs provides a regulated +20 VDC to source power to current transducers for interfacing. The +20 VDC source is protected by an internal auto-resettable fuse.

The six universal outputs (UO) can be configured as Triac or 0-10 VDC outputs. The controller can use Triac outputs to provide on/off or pulsed control for controlling damper positions, valves, alarms, lights or other loads where the current does not exceed 1A at 24 VAC for each output. The 0-10 VDC output has 10 bits of resolution for accurate control of external devices.

The six dedicated digital outputs (DO) are Triac outputs for control of additional on/off or pulsed external devices where the current does not exceed 1A at 24 VAC for each output.

The SC240-MP controller is protected from reverse power supply input wiring, over-voltages, transients, and other common events that can damage unprotected inputs and outputs.

Continuing the commitment to OPEN Controls, Smart Controls controllers can be programmed by multiple software packages available in the industry. User defined algorithms and functions can be programmed using VisualControl™, NodeBuilder®, LonBuilder® or other third party LONWORKS programming tools. The application program is stored in non-volatile memory allowing the application to be retained even after loss of power. The Real Time Clock and expanded memory allow applications for data logging, scheduling and time stamp monitoring and control. The versatile I/O allows numerous applications to be developed and implemented with the SC240-MP.

The enclosure snaps securely onto a 35mm DIN-rail for quick and easy mounting. A spring-loaded locking clip allows for quick and easy removal.

The wide operating temperature range, -20 to 70 °C, makes the SC240-MP well suited for many demanding applications.

Additional information

Weight 0.72 lbs
Dimensions 5.75 × 5.375 × 3.375 in
